AID PRODUCTION WITH ESP PACKERS
THAT ARE EASY TO SET, RETRIEVE, AND RELEASE
NOVOMET » Products and Services » Well Completions » Production Packers » ESP Packer
HYDRAULIC-SET ESP PACKERS

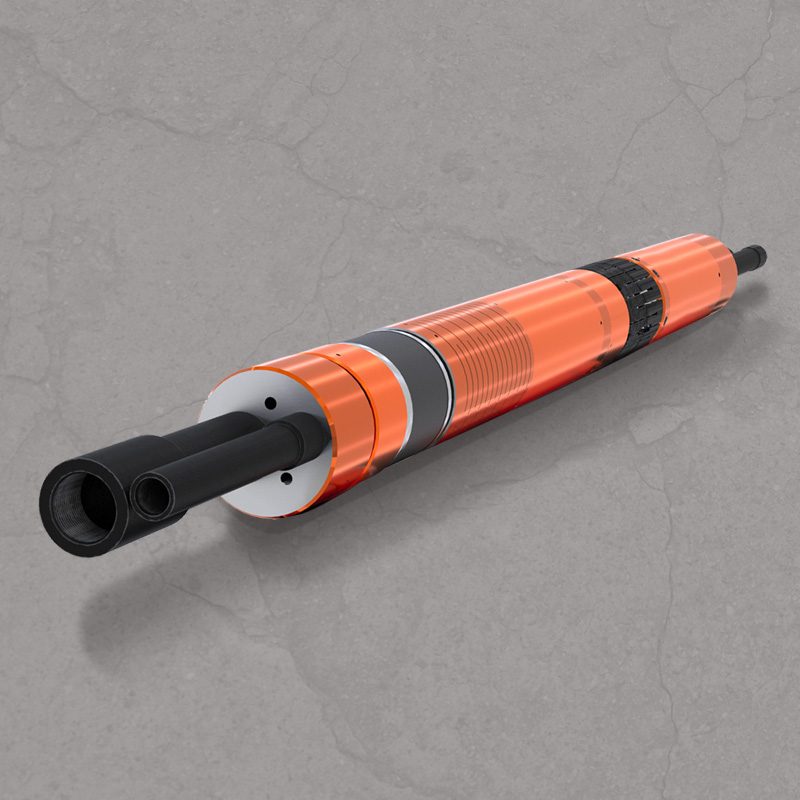

Novomet hydraulic-set ESP packers are designed to provide optimal casing protection when using an electric submersible pump (ESP). The flexible feed-through design has been simplified to ensure easy retrieval and redress. ESP packers are available with multiple elastomer trims and penetration options for use in a variety of situations, including fluid injection, venting of annular pressure, and instrument wire port bypass. In each case, our ESP packers provide cost-effective casing protection, pressure and fluid control, and zone separation essential to managing reliable production.
BENEFITS
Take less time for operation and retrieval
—Reduced number of parts simplifies the design
Obtain trouble-free set and release
—Hydraulically set, straight pull-through release eliminates errors
Get the options you need for your well
—Multiple elastomer trims and feed-through penetrator options enhance flexibility
applications
- Artificial lift and other situations using ESP systems
- Conventional, unconventional, land, and offshore wells
capabilites
- Anti-preset feature prevents setting while running in hole
- Elastomer trims include HNBR, FKM, and FEPM
features
- Optional threaded connections will accept a pack-off power cable feed-through system with cable pigtails or a drop-through penetrator
- Additional optional ports enable venting of annular pressure, fluid injection through the packer, and/or instrument wire port bypass
TECHNICAL CHARACTERISTICS
|
Packer Size x Tubing* |
Penetrations |
Temp Rating |
Penetrations |
Penetrations |
Release Force |
|
5 x 2⅜ in. (127 x 60mm) |
QTY 3 x ⅜ in. |
300°F max. (150°C max.) |
5,000 psi** (351.6 kg/cm) |
HNBR/ AFLAS/ VITON |
Adjustable – by 10,000 lb plus |
|
5 ½ x 2⅜ in. (140 x 60 mm) |
QTY 4 x ⅜ in. |
||||
|
6⅝ x 3½ in. (143 x 89 mm) |
QTY 1 x 2⅜ in. and 4 x ⅜ in. |
||||
|
7 x 3½ in. (178 x 89 mm) |
QTY 1 x 2⅜ in. and 4 x ⅜ in. |
||||
|
9⅝ x 4½ in. (219 x 114 mm) |
QTY 1 x 2⅞ and 4 x ½ in. |
*Tubing size listed is largest possible. Smaller sizes are available.
**Pressure rating may be higher in some configurations.

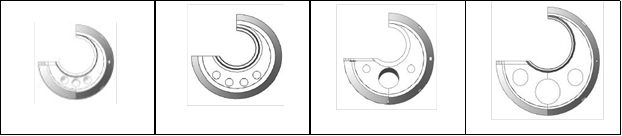

Various penetration options are available. Examples are shown above, but customized options are available.
Need more info?
Contact us for more information about hydraulic-set ESP packers
